What’s the name of the mesh the car spawns on top of?

The mesh's name is 1PIT



[JrC]

Thanks for the answer! So if I'm exporting x100 scale should I make the arrow 0.01 m or 1 m long? And if I export with x100 the scale what's a good distance from the track, height wise?

... do NOT quote me on any math extrapolations here.
Hopefully if I explain what I was doing you can make sense of what you are doing.

When i went back and checked I realized my scene was 0.01m scale but I had my start objects and pit objects as 1.00 scale. When I exported to 1.0 scale as lilski outlines then my pit box was huge. Floating in the sky huge.
When I didnt apply any z rotation to the boxes they would spawn me in ok. As soon as I applied any Z it got messed up and I couldnt figure out why it wasnt working. Once I redid the pit objects to the proper scale I could apply Z axis rotation with no issues.

Then there was the time I accidently tilted the box and didnt see it and that through me for another loop



[Andre Teixeira]

... do NOT quote me on any math extrapolations here.
Hopefully if I explain what I was doing you can make sense of what you are doing.

When i went back and checked I realized my scene was 0.01m scale but I had my start objects and pit objects as 1.00 scale. When I exported to 1.0 scale as lilski outlines then my pit box was huge. Floating in the sky huge.
When I didnt apply any z rotation to the boxes they would spawn me in ok. As soon as I applied any Z it got messed up and I couldnt figure out why it wasnt working. Once I redid the pit objects to the proper scale I could apply Z axis rotation with no issues.

Then there was the time I accidently tilted the box and didnt see it and that through me for another loop

I think I got it, I'll make sure to try it out



[ekvajan]

Hi.
Blender 2.91.
I have tried every possible way to export FBX (scale 1:1, 1:100, 1000:1) but the KSeditor does not show anything. Any tips?

The track is modelled 1:1 in metric scale in blender.



[JrC]

Hi.
Blender 2.91.
I have tried every possible way to export FBX (scale 1:1, 1:100, 1000:1) but the KSeditor does not show anything. Any tips?

The track is modelled 1:1 in metric scale in blender.

The track Im working on is at 0.01m scale in blender and Im exporting to 1:1 and it seems to work fine for me. I have had a couple issues where nothing was in the editor after it had been working as if the fbx was corrupted so I had to go back and revert a bit the reexport and it worked again.



[ekvajan]

Downscaling the track to 0.01 and fbx units finally did the trick for me



[chrisallen76]

Hi.
Blender 2.91.
I have tried every possible way to export FBX (scale 1:1, 1:100, 1000:1) but the KSeditor does not show anything. Any tips?

The track is modelled 1:1 in metric scale in blender.

I had a similar issue, but now using 1:1 metric in blender then using the "Apply Scalings: FBX All" and scale of 1.00 in the exporter in Blender 2.8, with -Z forward and Y up, which seems to work for me



[Andre Teixeira]

What distance do you recommend between pit boxes?



[JrC]

What distance do you recommend between pit boxes?

I used about a Car length + about a foot in between each one and it seemed good. Otherwise it was too tight imo...

I was still able to get 36 down Pit Road on Vancouver.

Also, this mod came out and its such a small thing but gets rid of the janky red pit box and its funny how such a small thing makes you realize how immersion breaking the default box is...

https://www.racedepartment.com/downloads/pit-cones-pc.39675/

Recommend.



[Portland12345]

What would be the next alternative to google earth for elevation data?

There is no lidar data.

I read over the rtb injection but there is no coverage for the track that I was thinking of making.



[Johnr777]

What would be the next alternative to google earth for elevation data?

There is no lidar data.

I read over the rtb injection but there is no coverage for the track that I was thinking of making.

Height maps?

Where's this track?



[Portland12345]

Height maps?

Where's this track?

Toronto motorsport park

I couldn't find lidar data.

Google maps was the only source I found.

https://torontomotorsportspark.com/


As you can see track is super basic.

Elevation looks at minimum.

Google maps accuracy is 3-5 meters at best which is way too off to be any good use.



[Johnr777]

Toronto motorsport park

I couldn't find lidar data.

Google maps was the only source I found.

https://torontomotorsportspark.com/


As you can see track is super basic.

Elevation looks at minimum.

Google maps accuracy is 3-5 meters at best which is way too off to be any good use.

Lol, Cayuga! My avatar picture is from one of my friday evening runs there

And yes, there's lidar data... The problem is always finding it in the government's website, and trying to find out which block of data to download.

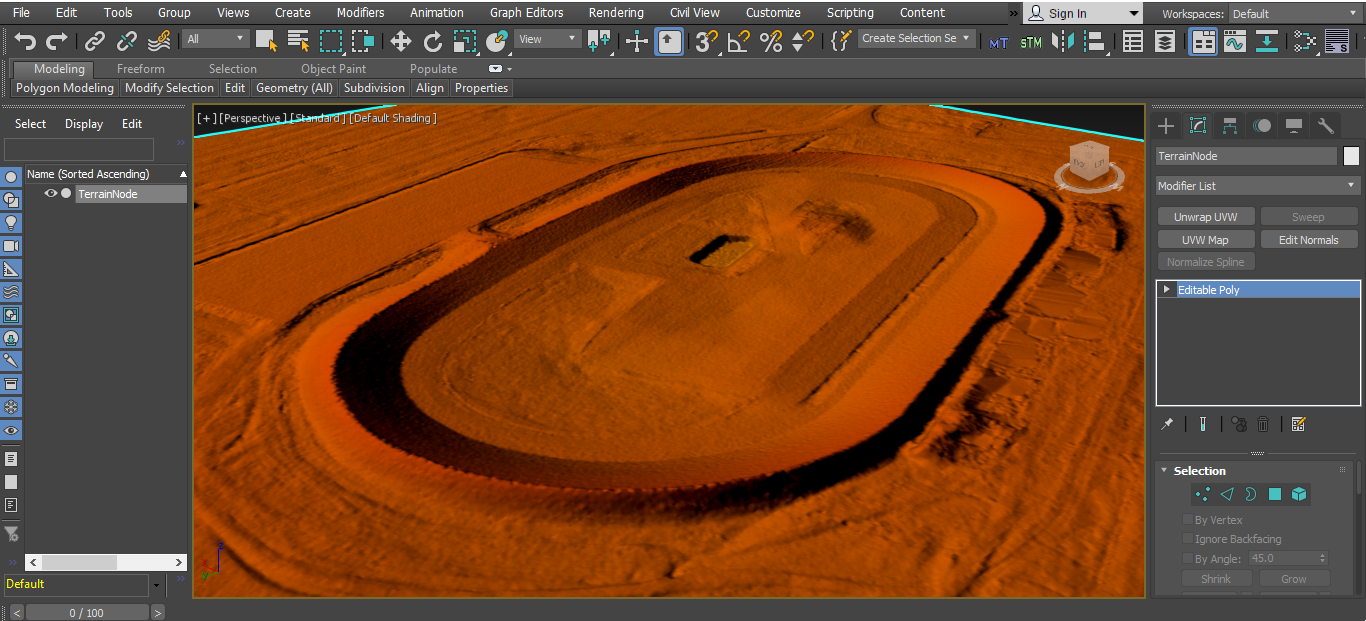

Here's what the data for that area will look like, a "bare earth" DEM without intensity... harder to work with but still very accurate: Jukasa Oval just north of TMP

I might have the chunk of data with TMP on it, will look later.



[Portland12345]

Lol, Cayuga! My avatar picture is from one of my friday evening runs there

And yes, there's lidar data... The problem is always finding it in the government's website, and trying to find out which block of data to download.

Here's what the data for that area will look like, a "bare earth" DEM without intensity... harder to work with but still very accurate: Jukasa Oval just north of TMP

View attachment 6210

I might have the chunk of data with TMP on it, will look later.

ahhhh

found it

OMAFRA Lidar 2016-18 data it 3.2 gig download. tons of dem images. I imported it to QGIS.


says accuracy 0.5 meters. Better than Google.


Now question is how do I work with this DEM.

I have only dealt with las/laz before and used cloudcompare, to import to Blender (ply, converted mesh) to work with.



[Portland12345]

So I figured it out to import to blender

But huge yikes.

Its 35 million verts.

Used Blender GIS plugin to import raw dem file.

I guess this will need cutting into many tiny pieces to manage, not moving at 1 fps.



[Johnr777]

So I figured it out to import to blender

But huge yikes.

Its 35 million verts.

Used Blender GIS plugin to import raw dem file.

I guess this will need cutting into many tiny pieces to manage, not moving at 1 fps.

Yikes!

maybe try to decimate the mesh?



[EKO Sim-Racing]

ahhhh

found it

OMAFRA Lidar 2016-18 data it 3.2 gig download. tons of dem images. I imported it to QGIS.


says accuracy 0.5 meters. Better than Google.


Now question is how do I work with this DEM.

I have only dealt with las/laz before and used cloudcompare, to import to Blender (ply, converted mesh) to work with.

What's that cute program right there? Just out of curiosity



[Andre Teixeira]

I am making a track in blender and I am wondering if any of the data I put into the textures (normal map, specular map, etc) is loaded in the KSEditor?



[Johnr777]

I am making a track in blender and I am wondering if any of the data I put into the textures (normal map, specular map, etc) is loaded in the KSEditor?

No, it only assigns the basic perpixel shader to the imported material. You'll need to assign the right shader and re-import those textures.



[BlablaPaige]

Is it possible to edit a KN5 to add an object to test its texture or you have to redo everything everytime?
